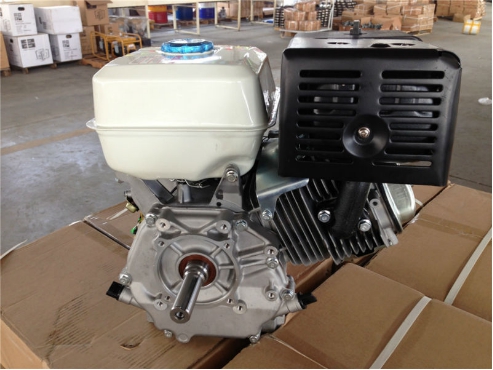

    Air-cooled 4 stroke OHV single cylinder 168F-1 196cc 6.5hp Small Gasoline engine

    Ask Lasest Price
    Brand Name : TECHWAY
    Model Number : TW-168F-1
    Certification : CE
    Price : negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 10,000pcs per month
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    Air-cooled 4 stroke OHV single cylinder 168F-1 196cc 6.5hp Small Gasoline engine

    Air-cooled 4 stroke OHV single cylinder 168F-1 196cc 6.5hp Small Gasoline engine


    Specifications:

    Model168F168F-1170F177F188F190F
    Engine TypeAir-cooled 4 stroke OHV single cylinder
    Bore X Stroke(mm)68 x 4568 x 5470 x 5477 x 5888 x 6490 x 66
    Displacement(cc)163196210270389407
    Compression Ratio8.5 : 18.5 : 18.5 : 18.2 : 18:18:1
    Max. Power Output(HP/rpm)5.5 / 36006.5 / 36007.0 / 36009 / 360013 / 360013 / 3600
    Max. Torque(N.m/)10.813.21419.126.528
    Ignition SystemNon-contact transistorized ignition (T.C.I)
    Starting SystemRecoil/Electric
    Air CleanerSemi-dry, oil bath, dual, double silent and cyclone type
    Fuel Tank(L)3.63.63.666.56.5
    Oil Capacity(L)0.60.60.61.11.11.1
    Fuel Consumption(g/kw-hour)≤395≤374
    Dimension(L x W x H)mm400 x 330 x 340495x 420 x 505
    G.W/NW(Kg)16/1528/2635/3336/34
    Container quantity 20GP630sets275sets
    Container quantity 40HQ1050sets690sets

    Description:

    1.OHV design enhances combustion efficiency

    2.High power-to-displacement ratio

    3.Easy starting with an automatic decompression system and an easy-to-grip soft recoil starter handle

    4.High quality materials and purpose-built components which ensure reliable, long-term use

    5.Meets world's most stringent environmental legislation

    6.Low fuel and oil consumption

    7.Reduced vibration and noise levels


    Applications:

    Suitable for the usage in office, shop, house, traveling, fan place


    Competitive Advantage:

    1. Portable gasoline generator

    2. Economic, low fuel consumption.

    3. Compact in structure, low in noise & pollution and high in efficiency.

    4. Stable voltage and frequency.

    5. Overload protection for safety operation.

    6. Exceptional performance at reasonable price.
