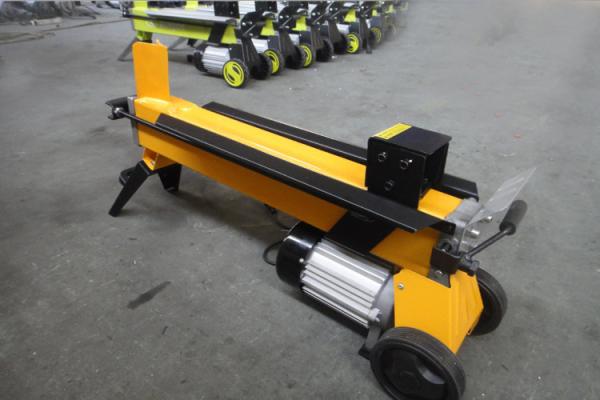

Fast Speed Firewood Log Splitter For Dividing Round Logs No Leaking

Ask Lasest Price
Brand Name :	TECHWAY
Model Number :	Wood splitter
Certification :	CE
Price :	negotiation
Supply Ability :	10pcs
Delivery Time :	20 working days after received your payment

Add to Cart

Product Details
Company Profile

Fast Speed Firewood Log Splitter For Dividing Round Logs No Leaking

Fast Speed Firewood Log Splitter For Dividing Round Logs No Leaking

ITEM	TECHNICAL SPECIFICATION	WEIGHT/CTN/QTY
ITEM	TECHNICAL SPECIFICATION
TW-ES-5T	Horizontal Log Splitter Motor: 230V/50Hz Power: 1500W Max. Splitting Force: 5 Tons Log Capacity Wood lengh(Max):520mm Wood Dia.(Max.): 250mm	43/41kgs 240pcs-20FT 480pcs-40HQ packing size: 1000285460mm
TW-ES-6T	Vertical Log Splitter Motor:230V~50Hz Power: 3000W Max. splitting force:6 Tons Log capacity Wood Dia.(Max.):400 mm Wood lengh(Max):580/770/1060mm	103/98kgs packing size: 5604601100mm
TW-ES-7TA	Vertical Log Splitter Motor:400V~50Hz Power: 3000W Max. splitting force:7 Tons Log capacity Wood Dia.(Max.):400 mm Wood lengh(Max):580/770/1060mm	103/98kgs packing size: 5604601100mm
TW-ES-7TB	Horizontal Log Splitter Motor:230V~50Hz Power: 2100W Max. splitting force:7 Tons Log capacity Wood Dia.(Max.):250 mm Wood lengh(Max):520 mm	58/55kgs packing size: 1240270455
TW-GS-12T	ENGINE:6.5HP FOUR STROKE RAM DIAMETER:2.5INCH RAM TRAVEL:550MM CONTROL VALVE:60L AUTO-RETURN HYDRAULIC PUMP:5GAL ONE STAGE MAX FORCE:12TON advance: CE certificate can be used in 3 positions,vertical,horizonal,and also 30 degree FAST SPEED FOR THE RAM.QUICK WORK	130/115kgs 40PCS/20FT 88pcs/40HQ plywood packing size 1160710480mm
TW-GS-16T	Product name:log splitter ENGINE:6.5HP FOUR STROKE RAM DIAMETER:3INCH RAM TRAVEL:580MM CONTROL VALVE:60L AUTO-RETURN HYDRAULIC PUMP:8GAL two STAGES MAX FORCE:16TON advance: CE certificate can be used in 3 positions,vertical,horizonal,and also 30 degree FAST SPEED FOR THE RAM.QUICK WORK	160/140KGS 40PCS/20FT 88pcs/40HQ plywood packing size 1160710480mm
TW-GS-18T	Product name:log splitter ENGINE:6.5HP RAM DIAMETER:3.0INCH RAM TRAVEL:610MM CONTROL VALVE:AUTO RETURN HYDRAULIC PUMP:21MPA MAX FORCE:18TON TIRE:6.5-8INCH advance: CE certificate	180/160KGS 44pcs/20FT 94pcs/40HQ plywood packing size 1790510500mm
TW-GS-22T	Product name:log splitter ENGINE:6.5HP four stroke PUMP:8GAL TWO STAGE PUMP RAM DIAMETER:4.0INCH RAM TRAVEL:610MM CONTROL VALVE:100L AUTO-RETURN MAX FORCE:22TON TIRE:6.5-8INCH CYCLE TIME:14S CE certificate	240/220KGS 44pcs/20FT 96pcs/40HQ plywood packing size 1790510500mm
TW-GS-26T	Product name:log splitter ENGINE:6.5HP four stroke PUMP:11GAL TWO STAGE PUMP RAM DIAMETER:4.5INCH RAM TRAVEL:610MM CONTROL VALVE:100L AUTO-RETURN MAX FORCE:26TON TIRE:6.5-8INCH CYCLE TIME:14S CE certificate	240/220KGS 44pcs/20FT 96pcs/40HQ plywood packing size 1790510500mm
TW-GS-34T	PATENT PRODUCT Product name:log splitter ENGINE:6.5HP FOUR STROKES WEDGE HEIGHT:200MM LOAD CAPACITY :LENGTH:610MM DIAMETERE:750MM TIRE:6.5-8 CYCLE TIME :3SECONDS H-BEAM HEIGHT :630MM OVER HEIGHT:970MM OVER LENGTH:2150MM WIDTH:780MM MAX FORCE:34TON FLYWHEEL MAX RPM:430 CLUTCH:Yes ADVANTAGE: CE certificate FRONT BRAKE WHEEL ,FAST SPEED FOR NO HYDRAUIC OIL,NO LEAKING	235/215KGS 30PCS/20FT 84PCS/40HQ plywood packing size 1730480850mm
TW-DS-40T	Product name:log splitter ENGINE :178F DIESEL RAM SIZE:5.0INCH RAM RAM TRAVEL:610MM MAX FORCE:40T WEDGE:FOUR WAY CONTROL VALVES:AUTO-RETURN TYRE:6.5-8 CYCLE TIME:18S ADVANCE: CE certificate TAIL LIGHT ELECTRIC START LOWER ENGINE POSITION HYDRAULIC OIL METER SPECIAL DESIGN OF TAKING OUT DIRTY STUFF FROM THE TANK	1PC/2CTN 40PCS/20FT 82PCS/40HQ packing size: machine:plywood 1815535510mm engine: carton 510410450mm 310/290KGS

Specifications:

Product name	Honda, Briggs & Stratton, Kohler gas motor industrial jockey wheel cheap 18ton towable log splitter
√	Model No.	TW-LS-18T
√	Pre-Assembled	No
√	Engine brand	Honda GX200, B&S I/C, B&S Vanguard, Loncin, Ducar, Lifan
√	Engine start	Recoil/Electric start
√	Displacement	200cc/196cc
√	Horse power	6.5hp, 4 stroke
√	Splitting method	Vertical and horizontal splitting
√	Max log diameter	25"
√	Max log length	25"
√	Wedge style	4-way (2-way available)
√	Replaceable wedge	Yes
√	Sharpenble wedge	Yes
√	Control valve	100L 3 position with auto-return
√	Cylinder	4"x25"
√	Ram travel	610mm
√	Max. force	18 ton
√	Pump	11 gallon, HI-LO 2 stage
√	Hydraulic filter	Yes
√	Hydraulic oil included	Yes
√	Tank capacity	20L
√	Cycle time	12 seconds
√	Tire	6.5-8 or 4.0-8 vacuum tire
√	Log cradles	Included
√	Jack stand	Included
√	Fenders	Included
√	Hitch ball size	2"
√	Safety symboy	Yes
√	Tire speed	60km/hour
√	Oil and temperture gauge	Included
√	OEM	Acceptable

Competitive Advantage:

1.Fast speed for working, save a lot of time

2.No hydraulic oil, no leaking

3.Front brake wheel, so easy to stop the engine

4.Special design, patent products, get big interest from your clients
